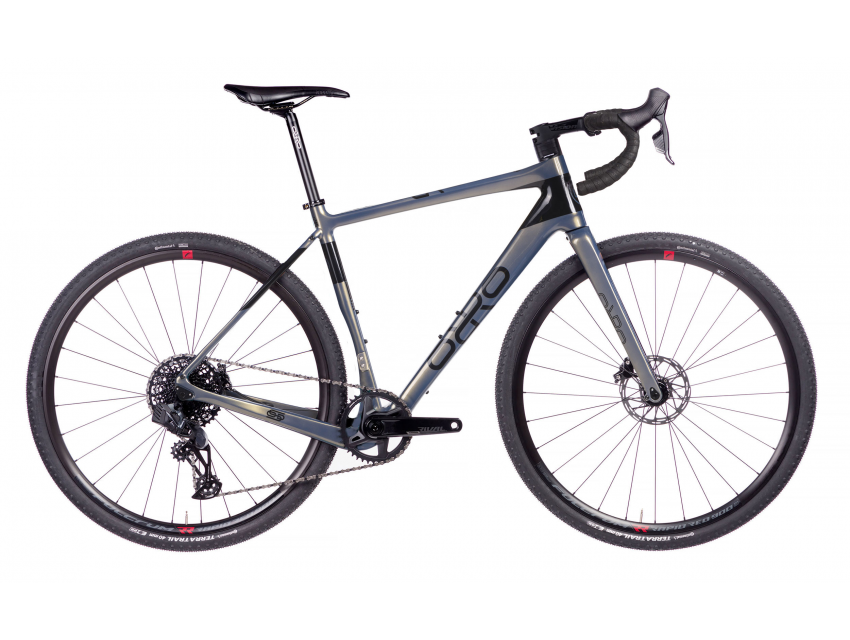

About the Terra C Gravel Bike

Terra C gravel bike is characterised by its light responsive ride quality, built with the specifications necessary to provide capable control across varied terrain. An adaptive bike crafted to ensure that your next adventure, new route, or old commute is a total blast.

The frame geometry is poised to descend and corner with ease inspiring confident off-road handling. Take it back to the tarmac and the excellent power transfer provided by the carbon layup is immediately apparent. Innegra fibres are woven into the carbon at strategic locations to protect the frame from impact damage; this ensures the ‘light and fast’ design ethos is met with the durability riders expect. This model is paired with Sram's new Rival Etap XPLR 1x groupset for seamless shifting at the touch of a button. The maximum weight limit for the frame bosses is 5kg.

Road.cc Recomends - 'Orro's designers seem to know what they're doing. This bike is stiff enough for those lung burning climbs while also being comfy for the longer days in the saddle'

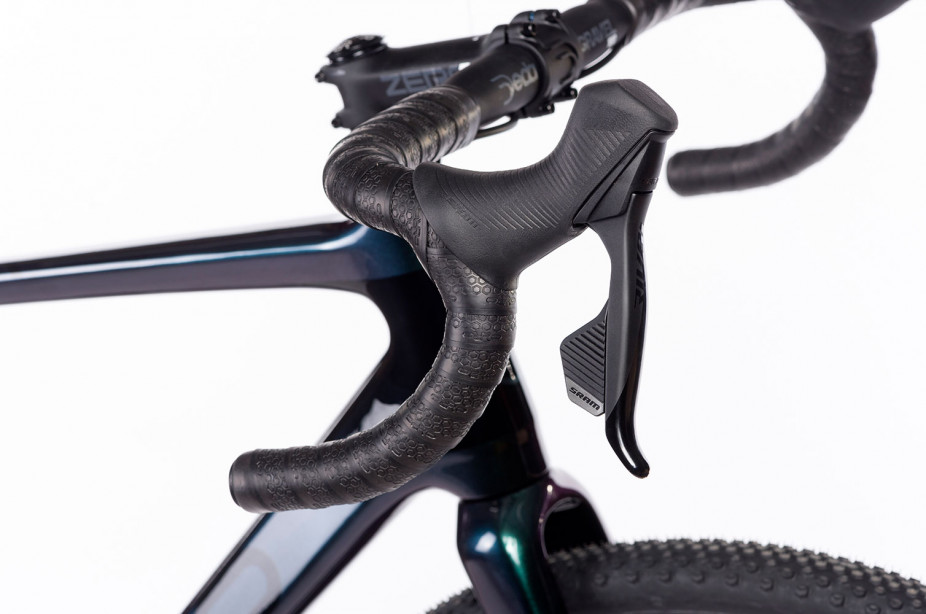

INTEGRATED CABLING

Terra C has a semi-integrated front end for an ultra-clean aesthetic. The hydraulic brake lines enter the frame via a cable box on the headset and run internally through the headtube, protecting them from the elements completely. Apart from looking seriously slick this also means the frame suffers no cable rub abrasion to the headtube when the handlebars are turned, and no interference with handlebar bags. This model is fully integrated, so you see no cables at all, with a Vision SMR Stem and A Wing Gravel Handlebar.

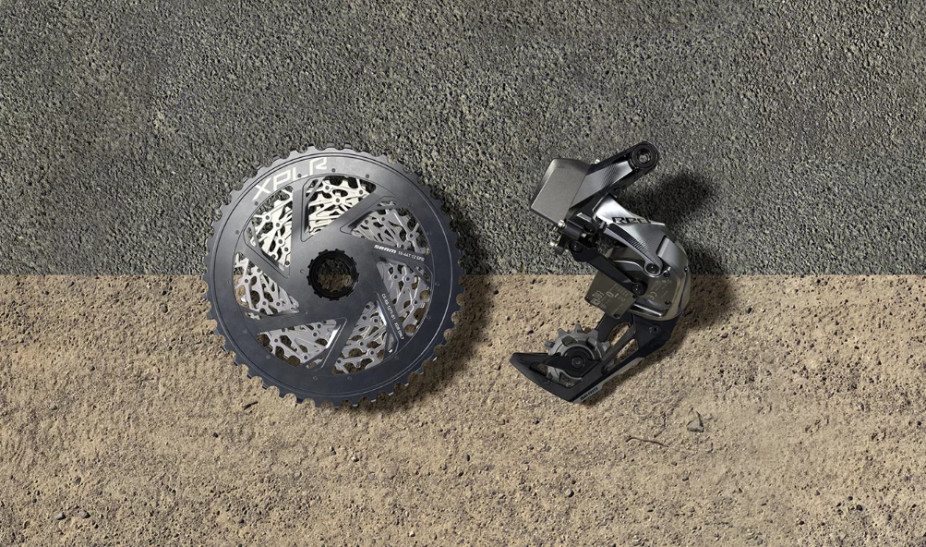

Sram Rival AXS XPLR

Tailored to the needs of drop bar riders, SRAM’s 1x-specific XPLR drivetrains target a gearing sweet spot. With a 10-44T or 11-44T cassette and matching derailleur, you get big range for gravel climbs and tight jumps for fast riding on road.

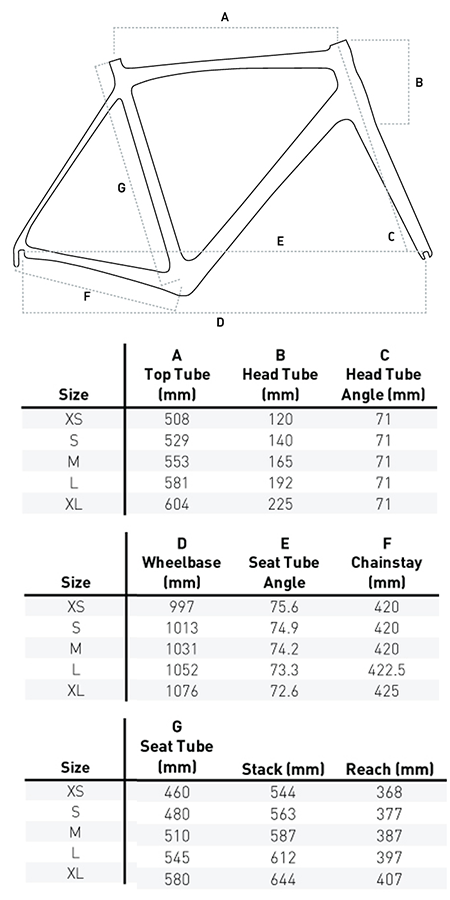

Geometry Chart

Components


Seatpost:ORRO Alloy Setback Rotor:Centerlock Paceline 160mm
Stem:FSA ACR Integrated Saddle:Orro Bostal Plus Saddle
Bottom Bracket:DUB PF 86.5 Frame:ORRO Terra C
Fork:ORRO Terra C Handlebar:FSA ACR Integrated
Chain:Sram GX Eagle 12 Speed Wheelset:Fulcrum Rapid Red 900 DB
Brake Calipers:Sram Rival Hydraulic Tyres:Continental Terra Trail 40c
Rear Derailleur:Sram Rival AXS XPLR 10-44 Shifters:Sram Rival AXS XPLR
Chainset:Sram Rival AXS XPLR 1x

Seatpost

ORRO Alloy Setback

Rotor

Centerlock Paceline 160mm

Stem

FSA ACR Integrated

Saddle

Orro Bostal Plus Saddle

Bottom Bracket

DUB PF 86.5

Frame

ORRO Terra C

Fork

ORRO Terra C

Handlebar

FSA ACR Integrated

Chain

Sram GX Eagle 12 Speed

Wheelset

Fulcrum Rapid Red 900 DB

Brake Calipers

Sram Rival Hydraulic

Tyres

Continental Terra Trail 40c

Rear Derailleur

Sram Rival AXS XPLR 10-44

Shifters

Sram Rival AXS XPLR

Chainset

Sram Rival AXS XPLR 1x
